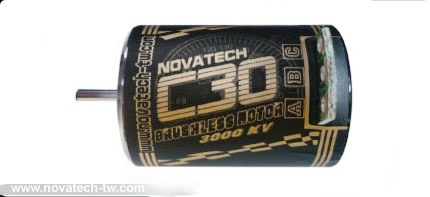

Terminal resistance 32±2mΩ
Terminal inductance 15(ref.)μH
KV(No load) 3000±100rpm/V
Max operating current 30A
Max operating speed 40000rpm
Max efficiency 79％ηmax.
Back-EMF-constant 0.3456mv/3000rpm
Torque constant 33.5g-cm/A
Weight 183g
　

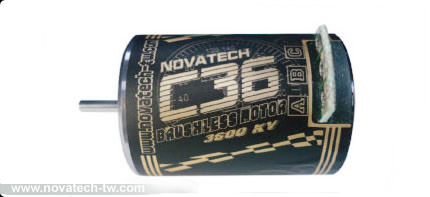

Terminal resistance 22±2mΩ
Terminal inductance 9(ref.)μH
KV(No load) 3600±100rpm/V
Max operating current 30A
Max operating speed 40000rpm
Max efficiency 80％ηmax.
Back-EMF-constant 0.2877mv/3000rpm
Torque constant 28g-cm/A
Weight 183g
　

Terminal resistance 16±2mΩ
Terminal inductance 7(ref.)μH
KV(No load) 4200±100rpm/V
Max operating current 30A
Max operating speed 45000rpm
Max efficiency 81％ηmax.
Back-EMF-constant 0.243mv/3000rpm
Torque constant 23.6g-cm/A
Weight 183g
　

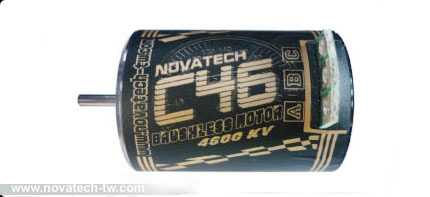

Terminal resistance

 16±2mΩ
Terminal inductance 7(ref.)μH
KV(No load) 4600±100rpm/V
Max operating current 30A
Max operating speed 50000rpm
Max efficiency 81％ηmax.
Back-EMF-constant 0.221mv/3000rpm
Torque constant 21.47g-cm/A
Weight 183g
　

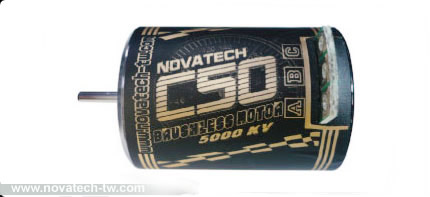

Terminal resistance

 12±2mΩ
Terminal inductance 5(ref.)μH
KV(No load) 5000±100rpm/V
Max operating current 30A
Max operating speed 50000rpm
Max efficiency 81％ηmax.
Back-EMF-constant 0.2018mv/3000rpm
Torque constant 19.6g-cm/A
Weight 183g
　


Terminal resistance

 8±2mΩ
Terminal inductance 3.5(ref.)μH
KV(No load) 6000±100rpm/V
Max operating current 30A
Max operating speed 50000rpm
Max efficiency 80％ηmax.
Back-EMF-constant 0.1702mv/3000rpm
Torque constant 16.5g-cm/A
Weight 183g
　
　
　
　
